VMB

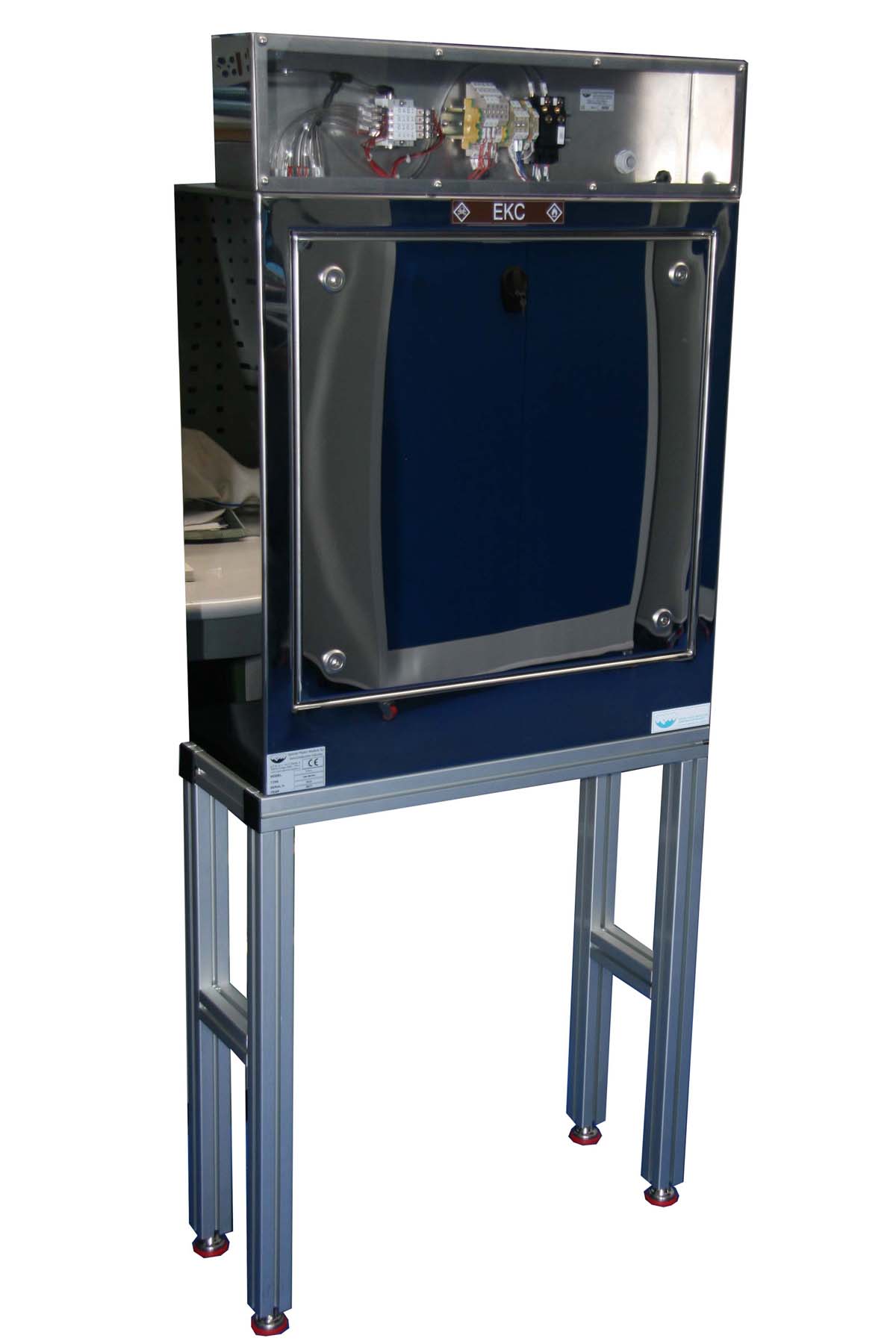

VMB means Valves Manifold Box. The purpose of these tools is to split one incoming chemical line into several to serve multiple processing equipments.

The standard VMB is composed by:

  • Safety Manual valve at inlet;
  • Safety PNE valve at inlet;

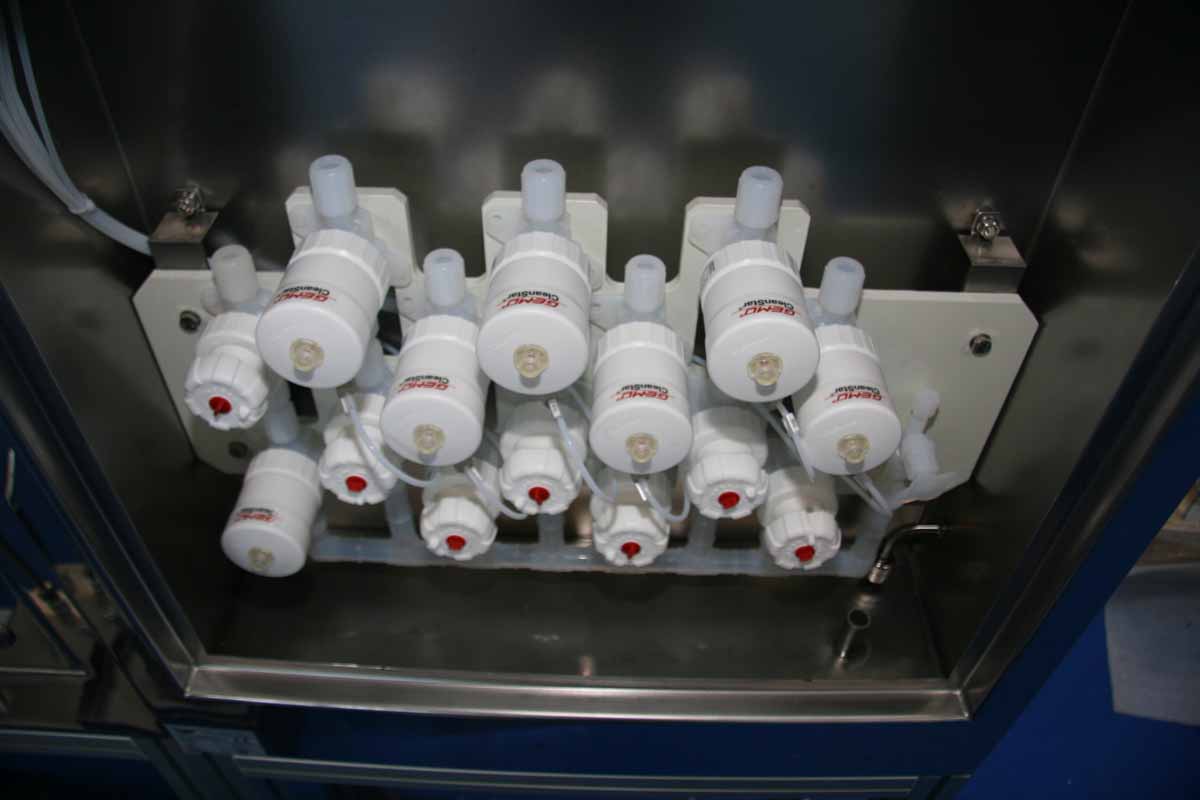

  • Several PNE valves according to POUs numbers (typically 6-8);
  • Door with interlock;
  • Containment tank with leak sensor.

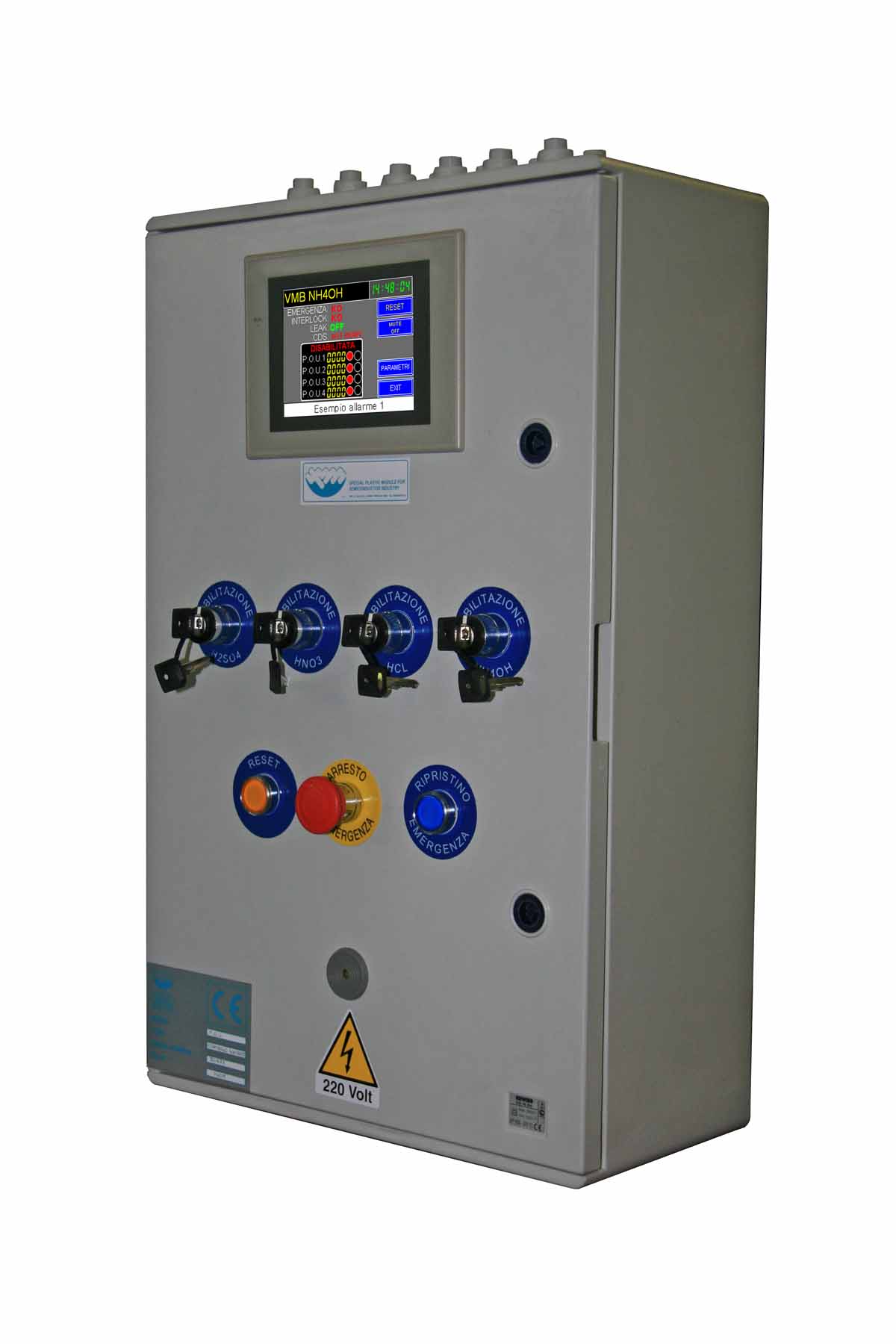

PLC controls entire function of the VMB. From the touch screen, users can check the status of the system, change settings and do maintenance operations.

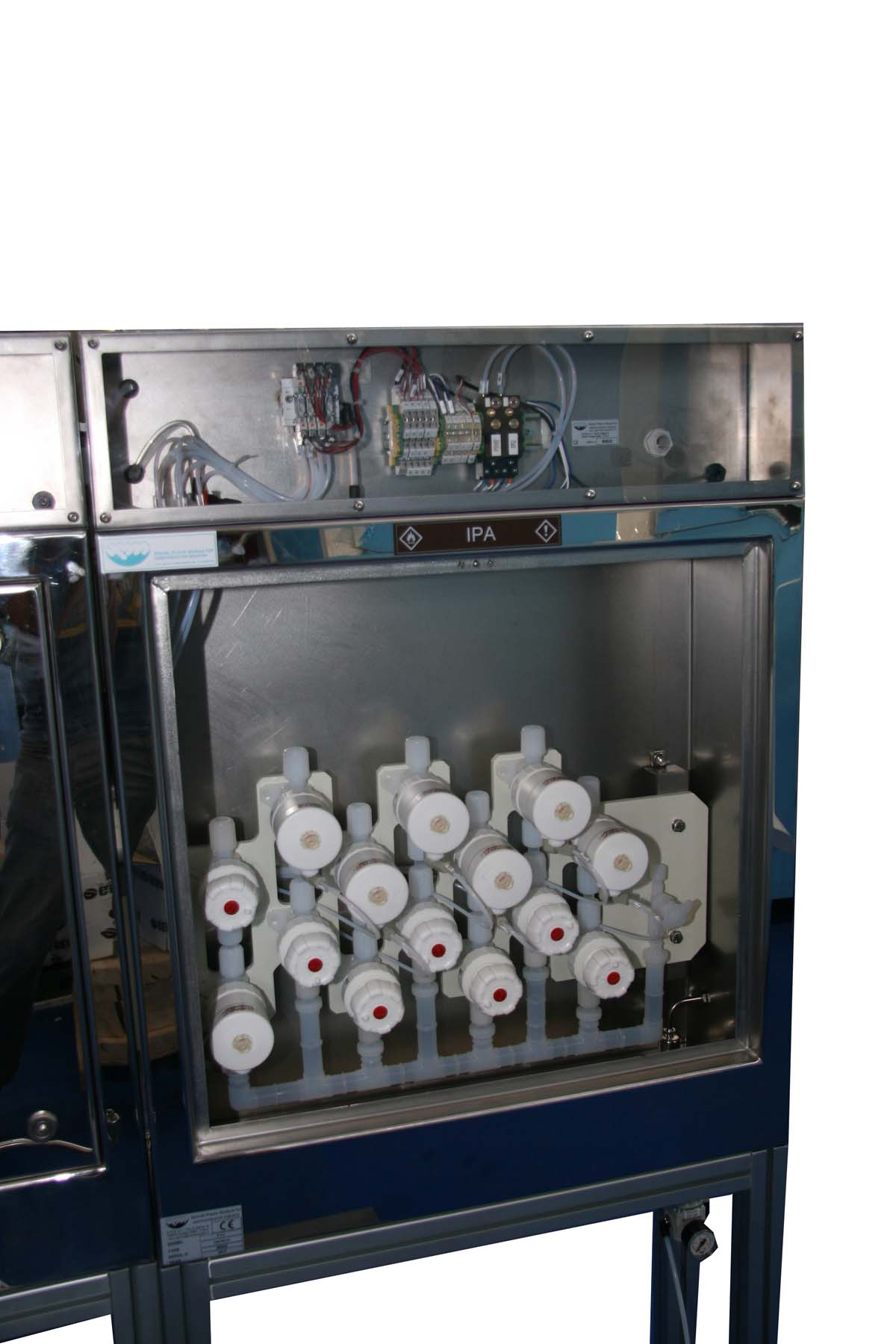

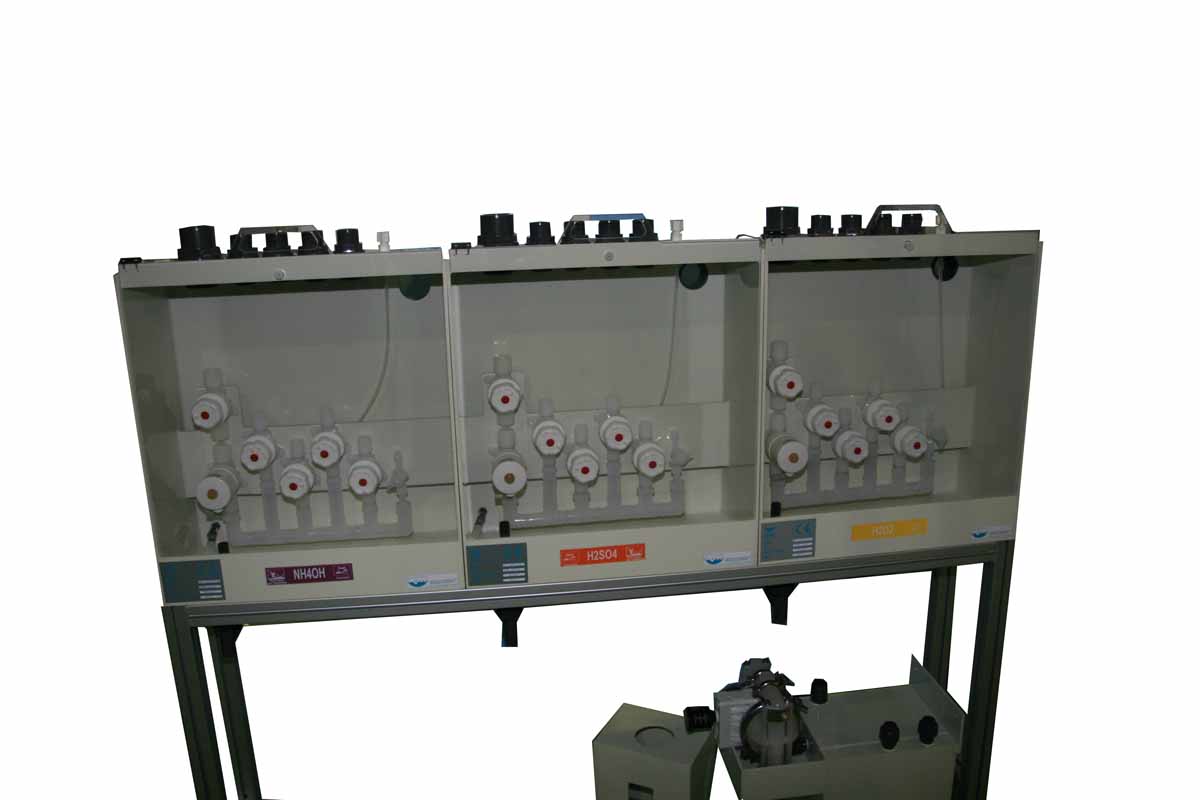

VMB for acid chemical: 1 PNE valve at input and 4 P.O.U. with manual valves.

Markets

Semiconductor

Split chemical lines for multiple equipment connection.

Photovoltaic

Split chemical lines for multiple equipment connection.

Research Centers / Labs

Split chemical lines for multiple equipment connection.

Chemicals

Split chemical lines for multiple equipment connection.

Pharmaceutic

Split chemical lines for multiple equipment connection.

Aerospace

Split chemical lines for multiple equipment connection.

Gallery
